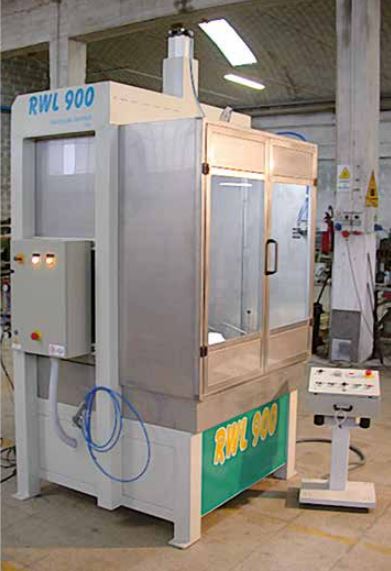

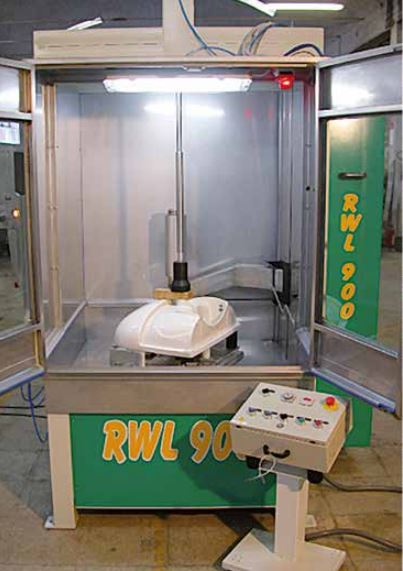

Grinding Machine
The machine produces wet grinding with diamond wheels for ceramic pieces - In this version there is a probe that guides the cutter following a series of specially made wheels.
The module consists of:
- Stainless steel structure containment water.
- Driving system of probe with pneumatic drill.
- Rotation system of the piece with the same tire lock.
- System pumping and filtration of the water processing.
- Closes soundproof machine with transparent access door.
- Switchboard control panel, protection and control.
Permitted Uses.
Grinding of ceramic pieces are not too complicated and processed uniform to avoid frequent changes of jigs.

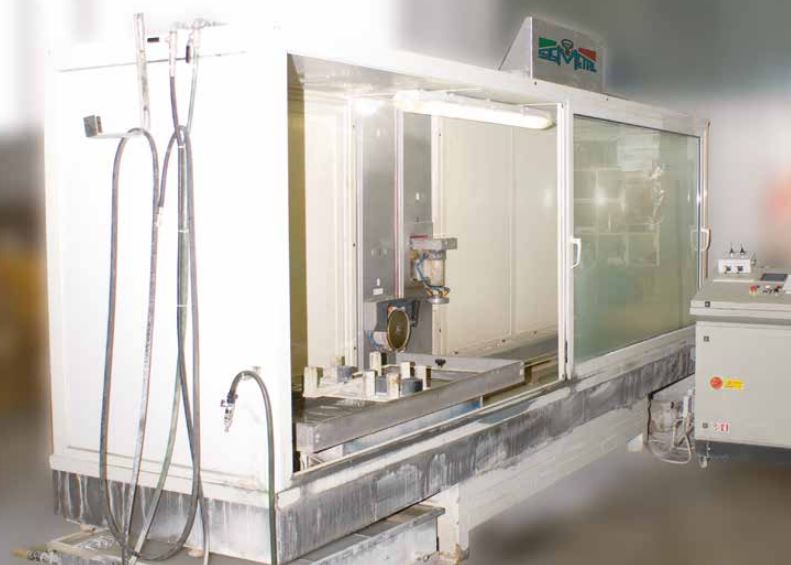

Grinding Machine - 1 wheels
The machine produces wet grinding with diamond wheels for ceramic pieces - In this version the movements are controlled by electric system by a PC - axis control system.
The module consists of:
- Structure stainless steel containment of water.
- System to guide the cutter in horizontal (y axis) closed loop with error correction.
- System driving the piece horizontally (x axis) closed loop with error correction.
- System pumping and filtration processing.
- Closes internally illuminated soundproof of the machine with sliding door access transparent.
- Switchboard control panel, PLC control and protection and keyboard touch human machine interface.
Permitted Uses.
Grinding of ceramic goods of all kinds with a single plan to be rectified (Foot vases, floor sinks, etc).
Grinding Machine - 2 wheels
The machine produces the wet milling of ceramic diamond grinding wheel - In this version the movements are controlled by electric positioner controlled by a PC - axis control system.
The module consists of:
- Structure stainless steel containment of water.
- System of a drill guide in the horizontal (y axis) closed loop with error correction.
- System driving the piece horizontally (x axis) closed loop with error correction.
- System driving the cutter 2 in horizontal (y axis) closed loop with error correction.
- System pumping and filtration processing.
- Closes internally illuminated soundproof the car with sliding door access transparent.
- Electric control panel, PLC control and protection and keyboard touch human machine interface.
Permitted Uses.
Grinding of ceramic goods of all types with one or two floors to be rectified. (Foot WC, washbasins with trellis, pots with double support floor / wall etc).
Bases cutting
The machine makes the cutting of stiffening bases placed on the foot of the pieces to prevent deformation during firing.
The module consists of:
- Structure stainless steel containment of water.
- System mounting and rotation (hydraulic) of the pair of rotating blades.
- System driving the piece horizontally (x axis), operated hydraulically.
- System pumping and filtration processing.
- Closes illuminated soundproof internally the machine with sliding door access transparent.
- Electric control panel, PLC control and protection and keyboard touch human machine interface.
Permitted Uses.
Bases cutting and inserts.
