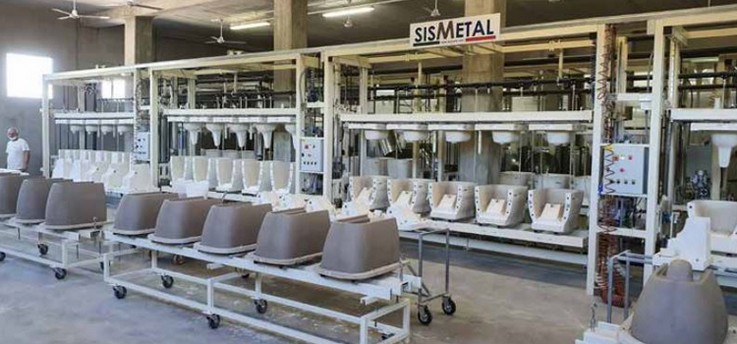

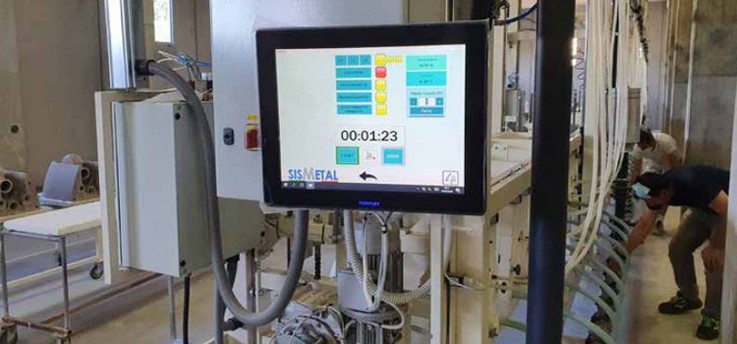

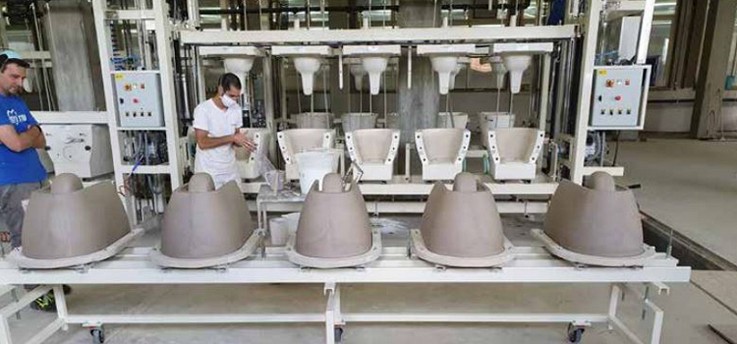

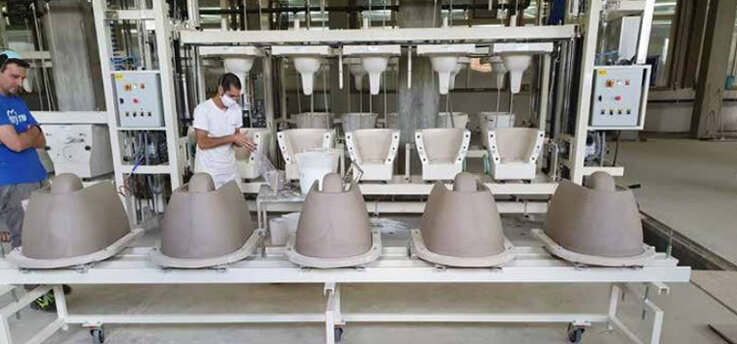

CASTING UNIVERSAL MACHINE 5 MOLDS - UM 5S
The machine is made up of a metal structure which supports a movable platform on which the lower half-mold is anchored, and an upper platform on which the upper half-mold is anchored and which has the function of keeping the mold closed. The mold is kept closed between the two frames (by pneumatic hoses) during the casting and drying phase.
The frames have the characteristic of being able to lift and rotate both right and left in any position (flat, vertical or inclined depending on the operation to be performed).
They are also equipped with micrometric adjustments to accommodate molds of all sizes.
It is possible to cast all the sanitary ware composed of two or three parts (if the third part is manually removable) such as: hang toilets and bidets (made with three-part molds), washbasins of all types, sinks, shower trays, tanks, columns or other special pieces. If you want to work with 4-piece molds, the machine must be supported by the SM 20 demoulder.
The machine allows the re-use of molds for manual casting, to cast and drain them always in any position, without any effort on the part of the operator, as all movements are electrically controlled (by gear motor).
It is adaptable to small productions and to productions that require frequent mold changes.
It only needs a 380 V 50 Hz power supply.
CASTING PLANT
The casting plant consists of a series of 3 “PVC pipes with tie outlets for fixing ¾” ball valves, manual calibration valves, pneumatic opening and closing valves and 2 level control tanks with ø 300x600mm. The feeding to the molds is carried out with a silicon pipe (Liguria type) with an internal ø of 20mm.
A slip emptying system made by means of a blower, a low pressure side channel and overpressure valve. The air is distributed to the molds through a system of aluminum pipes, calibration ball valves, pressure gauge with scale from zero to 1 bar, flexible pipes (natural silicone internal ø 13 mm) and ¼ “valves for the connection of the shapes .
The plant is complete with a locking system for demoulding plates and demoulding trolleys.
DIMENSIONS:
- CASTING BENCH WITH 5 MOLDS (200 Kg each) mm 4600X1000X h3500
- CASTING BENCH WITH 4 MOLDS (200 kg each) mm 3900X1000X h3500

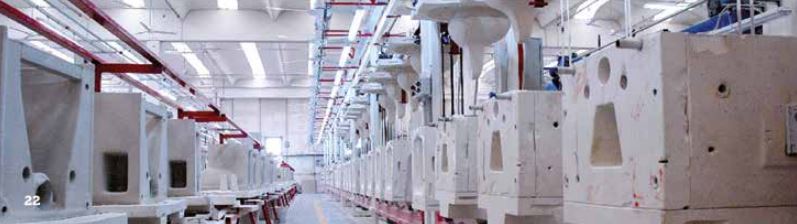

Casting machine for wc fixes
These machines are used for casting toilets and bidets. Born to lead 32+32 to 40+40 moulds mounted horizontally (horizontal axis jar). The machine is made by coupling modules either in length or width. If you plan to apply a dryer, you should create a series of machines coupled in length. For saving, the coupling in length allows to use demoulders on multiple benches, staggered appropriately casting time. The moulds are closed by the machine horizontally with pneumatic compressors and vertically by bracing.
The module consists of:
- Support benches mould fixed.
- Folding gates system for closing the moulds, with compensating tires (one every three moulds).
- Demoulder with easy manual handling.
- Demoulder maps with lift, manual and pneumatic actuators.
- Demoulder for pieces with manual and pneumatic actuators.
- Filing maps system in frontal plane or superimposed on the bench.
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc).
- Discharge plant with side channel blowers and adjustable pressure relief valve/s.
- Electrical system with switchboard, protection and control casting cycle/draining/consolidation.
- All safety devices provided by the most stringent existing standards and manuals on.
Deposit bench.
It is mounted frontally on each bench, in one or double floor, the latter for systems with dryer. In this last case it is to predict a easy roller change plan pneumatic. Featuring with slipping plans and heat distribution pipes (on request).
Dryer (see overview).
The dryer is available on request, can be placed on the machine to achieve a double casting daily. Includes the distribution system under the deposit bench.
Permitted Uses.
Casting of WC and bidets with foot or suspended, after the preparation of adapt moulds to horizontal demoulding. Recommended for medium/small pieces with modest quality requirements, being able to have a marked strain on the front of the bride.

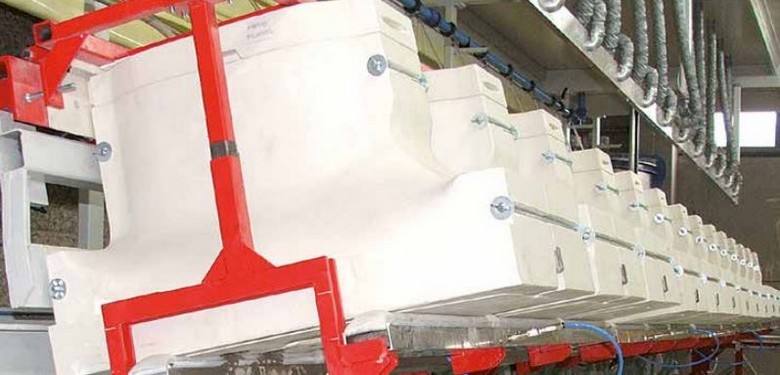

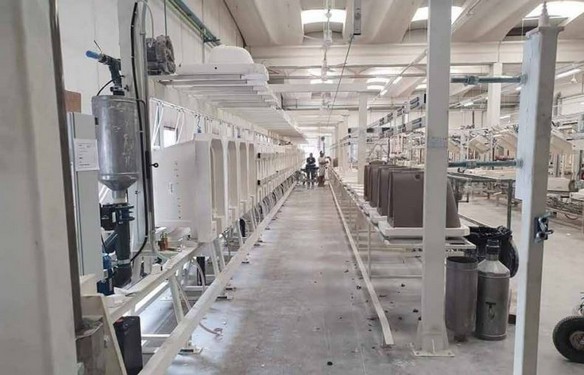

Inclinable casting machine for wc
These machines are used for casting toilets and bidets. Born to lead 32+32 to 40+40 moulds mounted horizontally (horizontal axis jar). The machine is made by coupling modules either in length or width. If you plan to apply a dryer, you should create a series of machines coupled in length. For saving, the coupling in length allows to use demoulders on multiple benches, staggered appropriately casting time. The moulds are closed by the machine horizontally with pneumatic compressors and vertically by bracing.
The module consists of:
- Support benches mould fixed.
- Folding gates system for closing the moulds, with compensating tires (one every three moulds).
- Demoulder with easy manual handling.
- Demoulder maps with lift, manual and pneumatic actuators.
- Demoulder for pieces with manual and pneumatic actuators.
- Filing maps system in frontal plane or superimposed on the bench.
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc).
- Discharge plant with side channel blowers and adjustable pressure relief valve/s.
- Electrical system with switchboard, protection and control casting cycle/draining/consolidation.
- All safety devices provided by the most stringent existing standards and manuals on.
Deposit bench.
It is mounted frontally on each bench, in one or double floor, the latter for systems with dryer. In this last case it is to predict a easy roller change plan pneumatic. Featuring with slipping plans and heat distribution pipes (on request).
Dryer (see overview).
The dryer is available on request, can be placed on the machine to achieve a double casting daily. Includes the distribution system under the deposit bench.
Permitted Uses.
Casting of WC and bidets with foot or suspended, after the preparation of adapt moulds to horizontal demoulding. Recommended for medium / small pieces with modest quality requirements, being able to have a marked strain on the front of the bride.

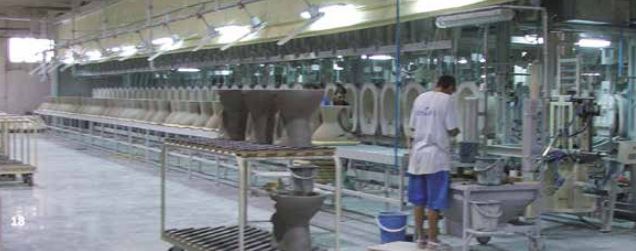

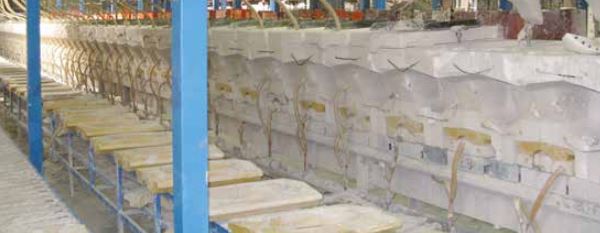

Fixed casting machine for wc
These machines are used for casting toilets and bidets. The machine is realized by coupling form 32+32 to 40+40 seats on line. Coupling can take place either in length or width. If you plan to apply a dryer, you should create a series of machines coupled in length. It allows also to reuse demoulder device, if provided. The moulds are closed by the machine horizontally and vertically by bracing.
The module consists of:
- Support benches moulds fixed seats on line with two fixed push heads and track for sliding bogies.
- Two movable units equipped with a release system from fixing on the bench.
- Two hydraulic pressure units, mounted on the moving heads, each consisting of four cylinders with the oscillating head adaptive and relative pressurization pump. The average pressure of closing on the four points is usually 40 bar.
- Truck for the furniture in equal in number to moulds assembled.
- Manual system for lifting bride, with wire ropes and counter weights.
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc).
- Discharge plant with side channel/s blowers and adjustable pressure relief valve/s.
- Electrical system with switchboard, protection and control casting cycle.
- All safety devices provided by the most stringent existing standards and manuals on.
Deposit bench.
Normally Not expected, because you generally use trucks to deposit pieces. Available on request. At front execution, in one or double floor, the latter for systems with dryer. In this last case it is to predict a easy roller change plan pneumatic. Featuring with slipping plans and heat distribution pipes (on request). Normally it is possible to use deposit bench.
Dryer (see overview).
The dryer is available on request, can be placed on the machine to achieve a double casting daily. Includes the distribution system under the deposit bench, if provided.
Permitted Uses.
Casting of WC and bidets with foot or suspended, recommended for medium / small pieces with modest quality requirements.

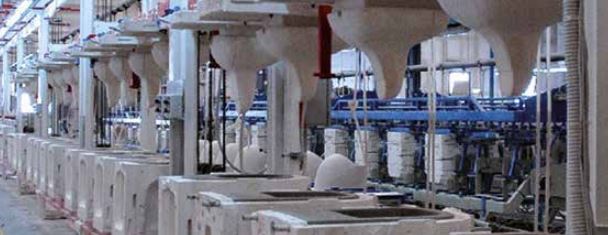

Casting machine fixed with LEM
The machine is made by laminating double-sided from 32+32 to 40+40 seats. The coupling can be either in length or width. If you plan to apply a dryer, you should create a set of coupled machines in length. For economy, the coupling length allows you to reuse the demoulders at multiple benches, conveniently staggered casting times. The moulds are closed horizontally and vertically by bracing.
The module consists of:
- Supporting bench mould tilted hydraulically.
- System of lower frames for supporting the mould on the lower bench.
- Demoulder to bride pistons with manual handling facilitated by counterweights.
- Demoulder for pieces automatic type with electric motors and actuators driven by an inverter (LEM) allows the extraction and rotation of the mould.
- Casting plant using PVC piping, valves and power distribution layer stainless steel tanks and accessories for use (taps, probes etc).
- Empty plant with side channel blowers and adjustable pressure valve.
- Electric control panel, protection and control cycle casting.
Deposit Bench.
Equipped with plans sliding wear and heat distribution pipes (on request).
Dryers (see overview).
The dryer is available upon request, can be mounted on the machine to make a daily double casting. Includes the distribution system under the deposit bench.
Permitted Uses.
Casting of toilets and bidets with foot or suspended, after the preparation of moulds. Recommended for parts through small / medium with low quality requirements, being able to have marked strain on the front of the rim.
Limits.
Leaching on the foot, the rim becomes the seat of every deposit of silicon or deformation. The pieces must be fitted with internal magnets having to replace the piston clamp placed at the top.
Casting machine for wc
The machine is made by coupling modules of 4 seats into groups by double sided from 32+32 to 40+40 seats. The coupling can be either in length or width. If you plan to apply a dryer, you should create a set of coupled machines in length. For economy, the coupling length can reuse across multiple transformers counters, staggered appropriately casting times. The moulds are closed by the machine vertically and horizontally by bracing.
The module consists of:
- Supporting bench moulds reclining electrically.
- Demoulder for pieces automatic type with electric motors and actuators driven by an inverter (LEM) allows the extraction and rotation of the mould.
- Casting plant using PVC piping, valves and power distribution layer stainless steel tanks and accessories for use (taps, probes etc).
- Empty plant with side channel blowers and adjustable pressure valve.
- Electric control panel, protection and control cycle casting.
Deposit Bench.
Equipped with plans sliding wear and heat distribution pipes (on request).
Dryers (see overview).
The dryer is available upon request, can be mounted on the machine to make a daily double casting. Includes the distribution system under the deposit bench.
Permitted Uses.
Casting of toilets and bidets with foot or suspended, after the preparation of moulds suitable for mounting the chassis and lock with key lock between the pieces. Recommended for all pieces of allowing particular foot up and turn or tilt the free press at all stages where it is closed (pouring, emptying, consolidation).
Limits.
There remains a need to have a demoulder LEM type to release piece and then the magnetic plugs, because the plugs must be fitted with internal magnets having to replace the piston clamp placed at the top.

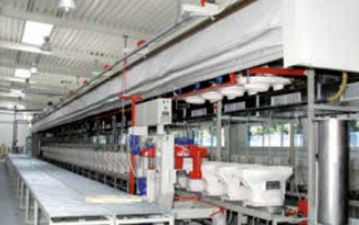

Envolved casting machine with LEM and limelight
The machine is made by laminating double-sided from 32+32 to 40+40 seats. The coupling can be either in length or width. If you plan to apply a dryer, you should create a set of coupled machines in length. For economy, the coupling length allows you to reuse the demoulders at multiple benches, conveniently staggered casting times. The moulds are closed horizontally and vertically by bracing.
The module consists of:
- Supporting bench mould tilted hydraulically.
- System of lower frames for supporting the mould on the lower bench.
- Demoulder to bride pistons with electrical moving into 4 groups.
- Demoulder for pieces automatic type with electric motors and actuators driven by an inverter (LEM) allows the extraction and rotation of the mould.
- Turner to allow casting with the foot up. Made to remove the mould, overthrow and replace bench casting.
- Casting plant using PVC piping, valves and power distribution layer stainless steel tanks and accessories for use (taps, probes etc).
- Empty plant with side channel blowers and adjustable pressure valve.
- Electric control panel, protection and control cycle casting.
Deposit Bench.
Equipped with plans sliding wear and heat distribution pipes (on request).
Dryers (see overview).
The dryer is available upon request, can be mounted on the machine to make a daily double casting. Includes the distribution system under the deposit bench.
Permitted Uses.
Casting of toilets and bidets with foot or suspended, after the preparation of moulds suitable for mounting the chassis and lock with key lock between the pieces. Recommended for all pieces of allowing particular foot high.
Limits.
Leaching on the foot, the rim becomes the seat of every deposit of silicon or deformation. The pieces must be fitted with internal magnets having to replace the piston clamp placed at the top. The dumper is another machine to be considered equal in number to the appropriate school or less staggering reversal.
Casting machine fixe with lem + set out bride system
The machine is made by coupling double-sided from 32+32 to 40+40 seats. The coupling can be either in length or width. Mould pieces are twice as viable as a mould of a WC is followed by a bride mould. If you plan to apply a dryer, you should create a set of coupled machines in length. For economy, the coupling length allows you to reuse the demoulders at multiple benchs, conveniently staggered times casting. The moulds are closed horizontally and vertically by bracing.
The module consists of:
- Supporting bench mould tilted hydraulically.
- System of lower frames for supporting the mould on the lower bench.
- Demoulder for pistons of clamp with manual handling facilitated by counterweights.
- Demoulder for pieces automatic type with electric motors and actuators driven by an inverter (LEM) allows the extraction and rotation of the mould.
- Special sucker active for the posting of the bride and exact re positioning of the pieces just processed with the interposition of a special mixture gluing.
- Casting plant using PVC piping, valves and power distribution layer stainless steel tanks and accessories for use (taps, probes etc).
- Empty plant with side channel blowers and adjustable pressure valve.
- Electric control panel, protection and control cycle casting.
Deposit Bench.
Equipped with plans sliding wear and heat distribution pipes (on request).
Dryers (see overview).
The dryer is available upon request, can be mounted on the machine to make a daily double casting. Includes the distribution system under the deposit bench.
Permitted Uses.
Casting of toilets and bidets with foot or suspended, after the preparation of moulds suitable for mounting the chassis and lock with key lock between the pieces. Recommended for pieces of major series in which the value added is given by dripping rim perfectly realized. There is the need for plugs for undercut.
Limits.
Requires good manual dexterity and considerable skill in laying the adhesive modelling must take into account the point of junction to maximize its invisibility.

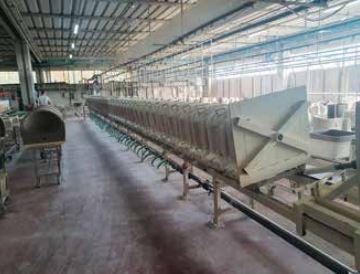

Fixed casting machine for washbasins + light demoulder device
These machines are used for casting wash basins and other pieces with moulds divided into two parts. The machine is achieved by coupling online forms by 60 seats (different quantity on request). Coupling can take place either in length or width. If you plan to apply a dryer, you should create a battery of machines coupled in length. For economy, the coupling length allows to reuse demoulder on multiple counters, staggered appropriately casting time. The moulds are closed horizontally to the parcel.
The module consists of:
- Support bench moulds to fixed inclination with two fixed push heads and track for sliding bogies.
- Movable units equipped with a release system from fixing on the bench.
- Oleo-dynamic pressures mounted on the moving heads, each consisting of four cylinders with the oscillating head adaptive and relative pressurization pump.
- Truck for the furniture in equal in number to moulds assembled.
- Sliding demoulder inside bench with oleo-dynamic function and turnover mould system, “plateau” stop and piece detachment.
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc).
- Discharge plant with side channel/s blowers and adjustable pressure relief valve/s.
- Electrical system with switchboard, protection and control casting cycle and demoulding. The latter is controlled by PLC and inverter to make sure and fluid its movements
- Under-mould blow system composed by a centrifugal fan and an inflatable inflatable hole hose.
- All safety devices provided by the most stringent existing standards and manuals on.
Deposit bench.
It is not avoid because, generally, it uses trucks to deposit pieces. On request.
Demoulder device Ulysses.
The casting machine demould into a tilted position, it need two people to avoid the sliding of the piece and transfer it to the deposit.
If you desire to avoid the second person, using the Ulysses, the extraction operation, it lift-up the piece on the desired plan and relocating it in automatic way. The operator only is a supervisor, in addition to that to achieve processing required on the demoulding piece (creating holes technicians, eliminating smearing etc).
Dryer (see overview).
The dryer is available on request, can be placed on the machine to achieve a double casting daily. Generally a blow for undermould is enough, included, to realize the second casting. Dryer need only if the slip is very particular and need long time.
Permitted Uses.
Casting of medium/large wash basins, simple in shape with modest quality requirements.

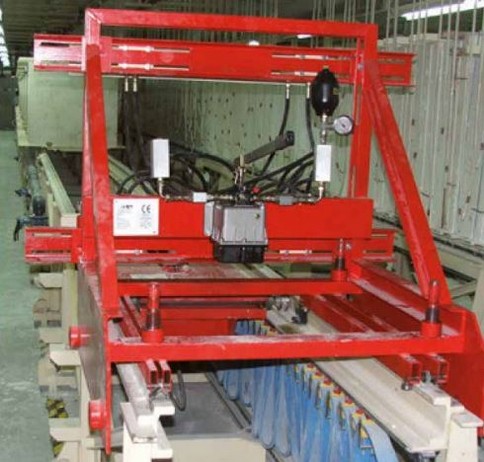

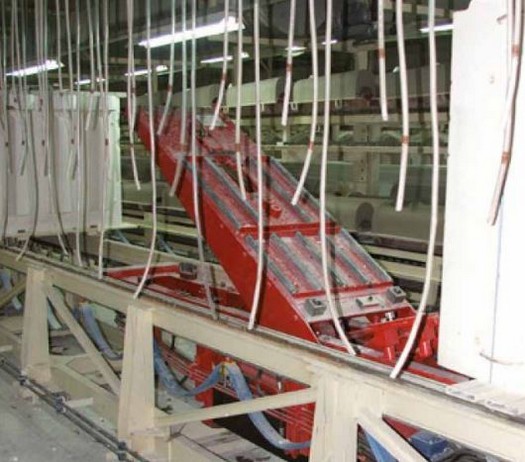

Inclinable casting machine for washbasins + heavy demoulder device
These machines are used for casting wash basins and other pieces with moulds divided into two parts. The machine is achieved by coupling online forms by 60 seats (different quantity on request). Coupling can take place either in length or width. If you plan to apply a dryer, you should create a battery of machines coupled in length. For economy, the coupling length allows to reuse demoulder on multiple counters, staggered appropriately casting time. The moulds are closed horizontally to the parcel.
The module consists of:
- Support bench moulds to variable inclination with two fixed push heads and track for sliding bogies.
- Oil-pressure device of inclination bench with cylinders.
- Movable units equipped with a release system from fixing on the bench.
- Oleo-dynamic pressures mounted on the moving heads, each consisting of four cylinders with the oscillating head adaptive and relative pressurization pump.
- Truck for the furniture in equal in number to moulds assembled.
- Demoulder, heavy type, power-driven, sliding inside bench with oil-pressure operation and anti-topple mould system, “plateau” block and detachment piece.
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc).
- Discharge plant with side channel/s blowers and adjustable pressure relief valve/s.
- Electrical system with switchboard, protection and control casting cycle; it has an inverter to make sure and fluid demoulder movements.
- Under-mould blow system composed by a centrifugal fan and an inflatable flex hole hose.
- All safety devices provided by the most stringent existing standards and manuals on.
Deposit bench.
It is mounted frontally on each bench, in one or double floor, the latter for systems with dryer. In this last case it is to predict a easy roller change plan pneumatic. Featuring with slipping plans and heat distribution pipes (on request).
Demoulder device Mini Ulysses.
As the machine demoulding on flat, two people only to transfer the piece to the deposit are enough. If you want to avoid the second person, using the simple demoulder device Mini Ulysses type, the lifting operation on the desired floor and replacing the piece is fully automatic and can be performed by a single operator who has the supervisor role, in addition to that, in any case, to realize the necessary work on the piece just demoulded (technical realization holes, removing burrs, etc).
Dryer (see overview).
The dryer is available on request, can be placed on the machine to achieve a double casting daily. Generally a blow for undermould is enough, included, to realize the second casting. Dryer need only if the slip is very particular and need long time.
Permitted Uses.
Casting of large wash basins/showers, columns, in any shape with high quality requirements.

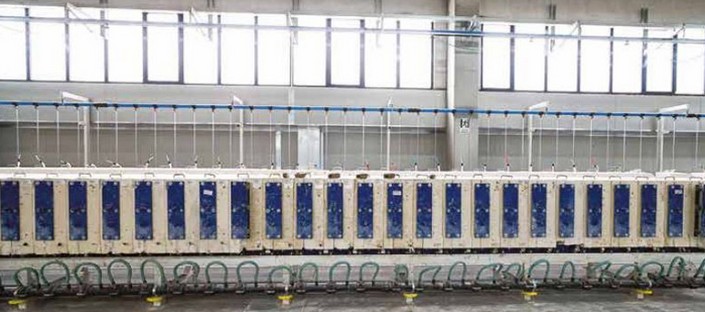

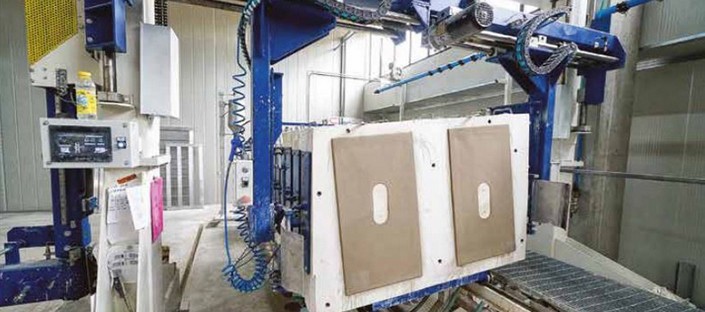

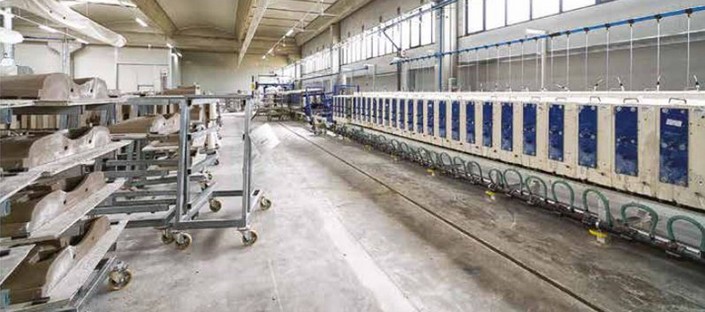

Casting machine shower trays
The machine is made by coupling modules in line from 50 or 60 moulds. The coupling can be either in length or width. If you plan to apply a dryer, you should realize a set of coupled machines in width. For economy, the width coupling allows to reuse the demoulder on several benches, adding a translator and a track, staggering appropriately casting times. The moulds are closed horizontally at pack.
The module consists of:
- Support bench moulds to fixed inclination with two fixed push heads and track for sliding bogies
- Lateral guidances to support external demoulder
- Movable units equipped with a release system from fixing on the bench
- Oleo-dynamic pressures mounted on the moving heads, each consisting of four cylinders with the oscillating head adaptive and relative pressurization pump
- Truck for the furniture in equal in number to moulds assembled
- External demoulder at arc, heavy series, motorized, sliding on rails outside the bench at electro-hydraulic system with rollover mould, “plateau” block, detachment pieces and placing on cart
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc.).
- Discharge plant with side channel/s blowers and adjustable pressure relief valve/s.
- Electrical system with switchboard, protection and control casting cycle
- Under-mould blow system composed by a centrifugal fan and an inflatable rotatory hole hose
- All safety devices provided by the most stringent existing standards and manuals on
Deposit bench.
The machine is designed for use only cart provided. The bench is not provided.
Dryer (see overview).
The dryer is available upon request, it can be mounted on the machine to make a daily double casting. Usually the blower with inflatable tube sub-moulds type is enough, supplied, in order to achieve a second casting. The dryer is used only if the slip is particularly and needs long time.
Permitted Uses.

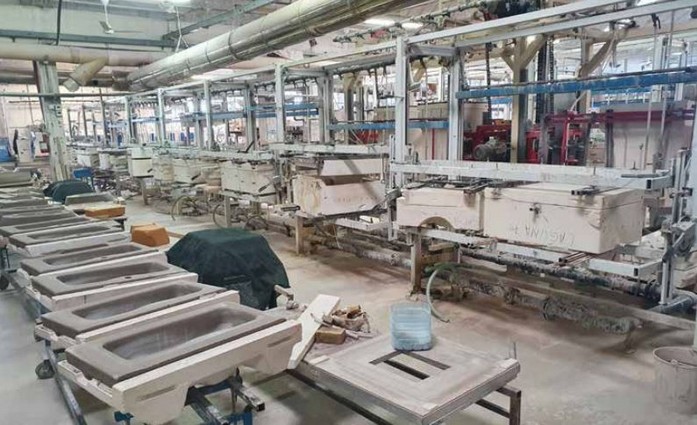

Casting wash basins / shower trays, columns etc.. large with high quality expectations.

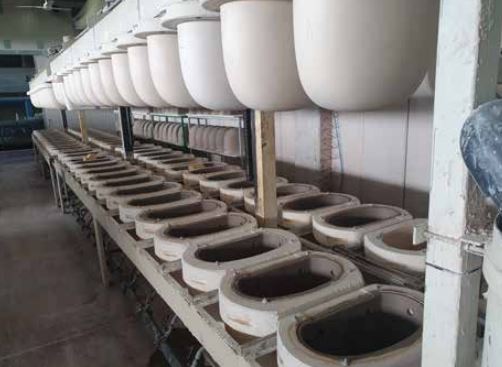

Casting machine for tank
The machine is made by 15+15 pieces on 2 parallel lines. The coupling can be either in length or width It is possible to apply a dryer for demoulds, the “on length” disposition is cheaper for dryer installation.
The module consists of:
- Support bench mould on floor where lower semi-moulds are fixed (concave).
- Higher cross lifted which supports upper semi-mould (convex).
- Lifting system implemented by gear motors, trapezoidal screws.
- The moulds closing system is mechanical with a pneumatic system to have a perfect fit to the moulds.
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc).
- Electrical system with switchboard, protection and control casting cycle.
- All safety devices provided by the most stringent existing standards and manuals on.
- The piece can be extract easily by hand, even staying on top (by placing under a plateau of demoulder and releasing it with a blast of compressed air) to parade it from the lower (in this case it is necessary to choose define demoulding points or mould pieces to be removed).
Deposit bench.
Considering high piece density the same are deposited on trolleys reducing space of fixed deposit bench, on specific request.
Demoulder device Mini Telemachus type.
To facilitate the extraction of the piece from the lower moulds, especially for very large tanks or basins etc. You can use the simplified demoulder Mini Telemachus type. Thanks it the lifting operation on the desired floor and replacing the piece is fully automatic. It is all pneumatic, as also the necessary vacuum to suction sampling is achieved by draft gage to venturi effect.
Dryer.
The dryer, available on request, can be placed on the machine to achieve a double casting daily.
Permitted uses.
This machine was made to realize pieces with obliged thickness (without drainage) and with two parts moulds, but it can be also used to produce other pieces, always into 2 parts and not big size, realized with mould divided into two parts such as wash basin.
Casting machine servo-assisted type
The casting machine, CSC type, allows simultaneous casting from one to six plaster moulds, depending of the mould size and type.
The module consists of:
It consists of special frames where mould can be fixed. It has the characteristic of being able to rotate the frames both jointly or individually. It can casts all sanitary wares composed by two or three parts (if the third party is manually removable) such as toilets and bidets suspended (made with molds in three parts), wash basins of all kinds, kitchen sinks, shower trays, cisterns, columns, other special parts, etc. The casting machine, CSC type, allows to install moulds initially developed for manual casting, allowing casting and dripping them into every position (at flat, vertical or inclined as needed) and it is true even for demoulding phase possible in any position with a minimum effort for the operator (in fact it presents a series of adjustable counter- weights, related to the weight of the mould, to minimize the effort to lift its the various parts).
The operator can rotate the two parts of the mould for casting and drain in each desire location. Demoulding phase allows taking away two semi-moulds (assisted by ropes and counterweights system) and turning them independently, in any position you desire. The piece is removed from the mould, settled in horizontal position, through a demoulder- truck with pneumatic function (it mounted only an auxiliary rubber pneumatic cylinder). The units can be coupled freely into length or frontally, by means of proper accessories provided.
Permitted Uses.
It is a good solution for small productions, productions that require frequent changes of moulds, tests of production of simple maintenance, without power supply and then easy to move from a department to another.
